Ground surface mapping gets tricky when a site is dotted with exposed rock and sinkholes. On land like this, the surface rises and dips in ways that broad contours can’t capture, and a missed low spot or ledge can send a whole design in the wrong direction. A survey here records the true shape of the ground, including the odd features this kind of terrain throws up. It maps geometry, not geology, and that difference shapes how the data gets used.

Distinguishing Visible Karst Features from General Terrain

A site over limestone holds features that stand apart from ordinary rolling ground. Closed depressions with no outlet, patches of exposed rock and small openings where water disappears all hint at what lies below. A surveyor learns to spot these while walking the site, since they change how the mapping should proceed.

The survey documents what these features look like, not what causes them. A crew records the shape, size and elevation of a depression or an outcrop, and it leaves the question of whether a hole is active to a geologist. That line between mapping and diagnosis matters, because a survey can describe a feature without judging its risk.

Spotting the features early guides the rest of the work. Once a crew knows where the rock and depressions sit, they plan denser measurements around them. The general terrain gets normal treatment, while the odd features earn extra attention.

Recording the Shape and Elevation of Rock Outcrops

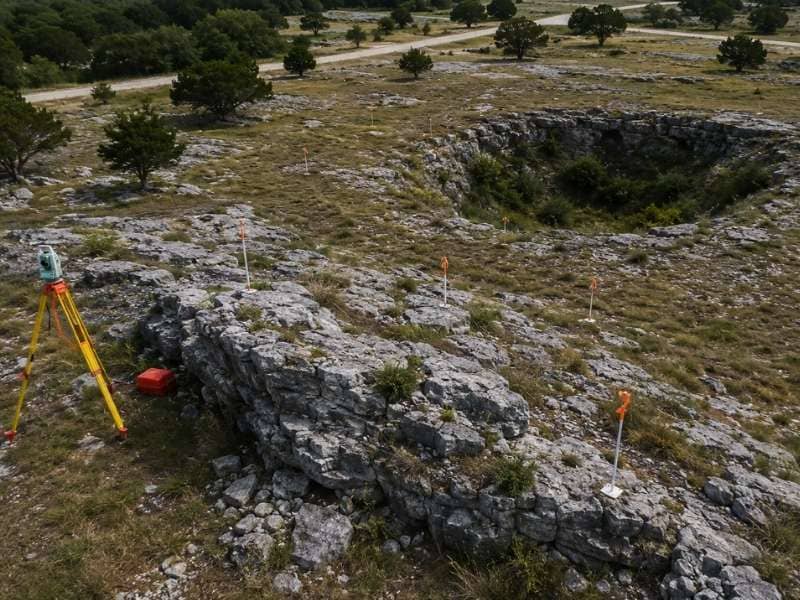

An exposed rock outcrop needs more than a single point to describe it. The crew traces its limits, marks the high points and records the elevation along its faces and ledges. A large outcrop can rise several feet within a short distance, so each edge gets its own reading.

This detail feeds directly into design decisions. A team planning a foundation or a road cut needs to know exactly where solid rock sits and how high it stands. A vague outline forces guesswork, while a well-measured outcrop lets the design account for the rock instead of colliding with it.

Mapping Closed Depressions Without Smoothing Away Critical Detail

A closed depression is one of the harder features to map well. Its rim, its low point and its side slopes all carry meaning, and automated contours often round them into something gentler than reality. So the crew takes targeted readings around and inside the depression.

Breaklines help hold the true shape. By tracing the rim and the steepest slopes as lines, the surveyor tells the software where the ground bends sharply. The finished model then shows a real basin instead of a soft dish that never existed.

This care protects the design. A depression that funnels water toward a weak spot is exactly what a design team needs to see clearly. Smoothing it away on the map hides a drainage problem that will surface later on the ground.

Coordinating Survey Data with Geotechnical Investigation

A surveyor, a geologist and a geotechnical engineer each bring a different skill to this kind of site. The surveyor maps where features sit and how the ground is shaped. The others study what lies beneath and how it will behave under a building.

The mapped features guide where the deeper study happens. When a survey shows a cluster of depressions, the geotechnical team knows where to place its borings and tests. Solid survey data points the investigation toward the spots that matter most, which saves effort and sharpens the findings.

Building a Surface Model That Supports Realistic Site Planning

All the field detail comes together in a digital terrain model. This model shows the site’s true shape, including the depressions, outcrops and slopes the crew mapped. A designer can study grading, drainage paths and building placement on it before touching the real ground.

The model works best when it marks the areas that need caution. Zones around known depressions can be flagged so the design keeps clear of them. Drainage analysis run on an honest model reveals where water really wants to go.

One more step keeps the model current. After a site gets cleared of brush and debris, features hidden before may come into view. A verification visit updates the model so it still matches the ground the builders will work on.

Frequently Asked Questions

Can a topographic survey confirm whether depression is a sinkhole?

No. A survey records the size, shape and depth of a depression, but confirming it as an active sinkhole falls to a geologist or geotechnical engineer. The survey gives them accurate measurements to study. The judgment about what is happening underground rests with those specialists.

Will LiDAR always capture the true ground around exposed rock?

Not always. LiDAR can struggle where dense brush or steep rock faces block the laser, leaving thin or missing data in those spots. A crew often adds ground measurements to fill the gaps. Trusting the scan alone around complex rock can leave holes in the model.

What survey detail should be requested for a karst-sensitive site?

Ask for dense points and breaklines around any depressions or outcrops, plus a clear note on which features are mapped as approximate. A tight contour interval helps too. The goal is a model that shows the tricky spots in full, not a smoothed version that hides them.
